FORWARD THINKING

TECHNOLOGY

A first-of-its-kind vertically-integrated EV platform introducing improvements in safety, driver experience, and vehicle operation tuned to the needs of commercial fleet operators and other medium-duty vehicle customers.

All for zero price acquisition premium over today’s equivalent gas- and diesel-powered vehicles.

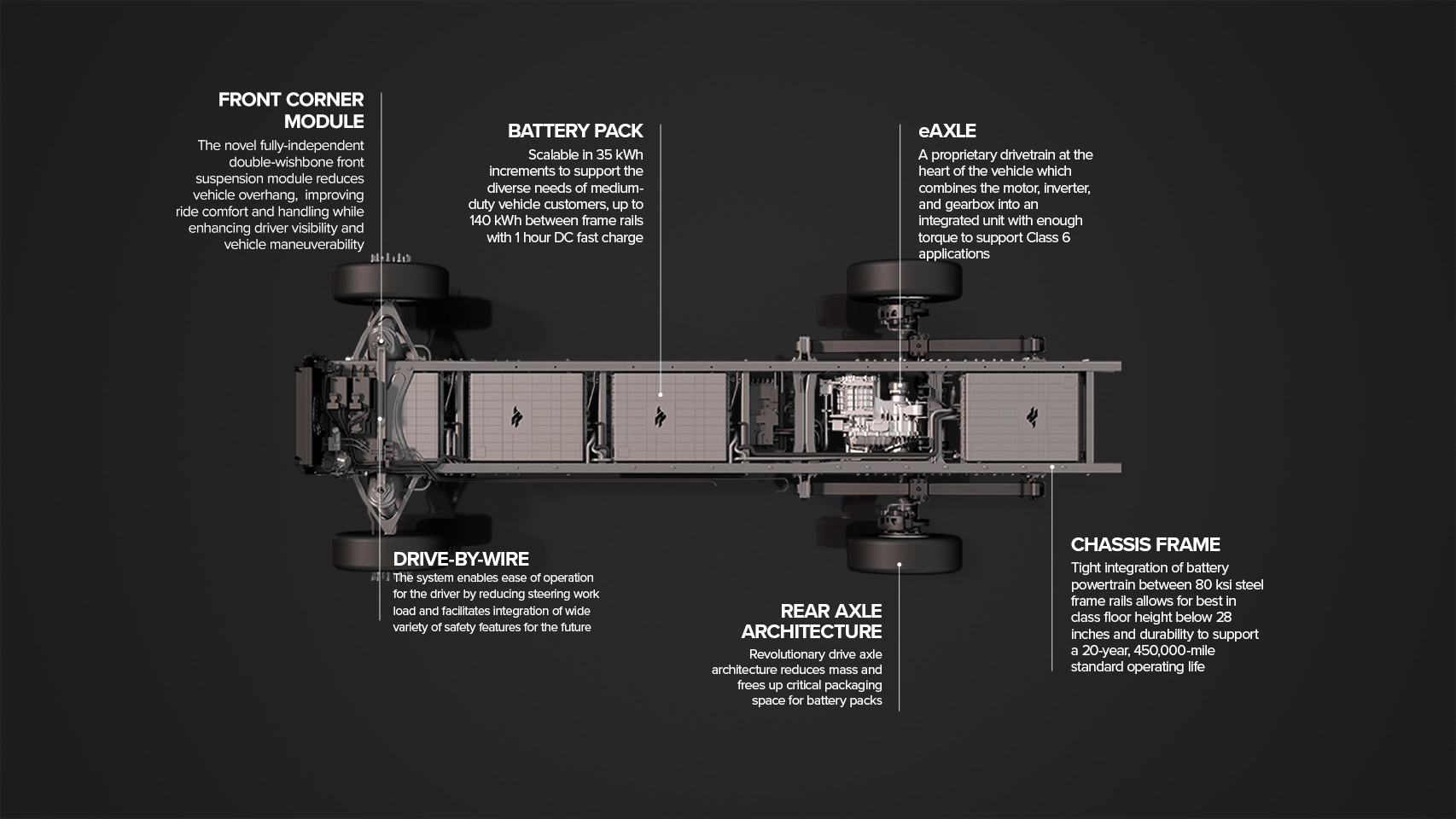

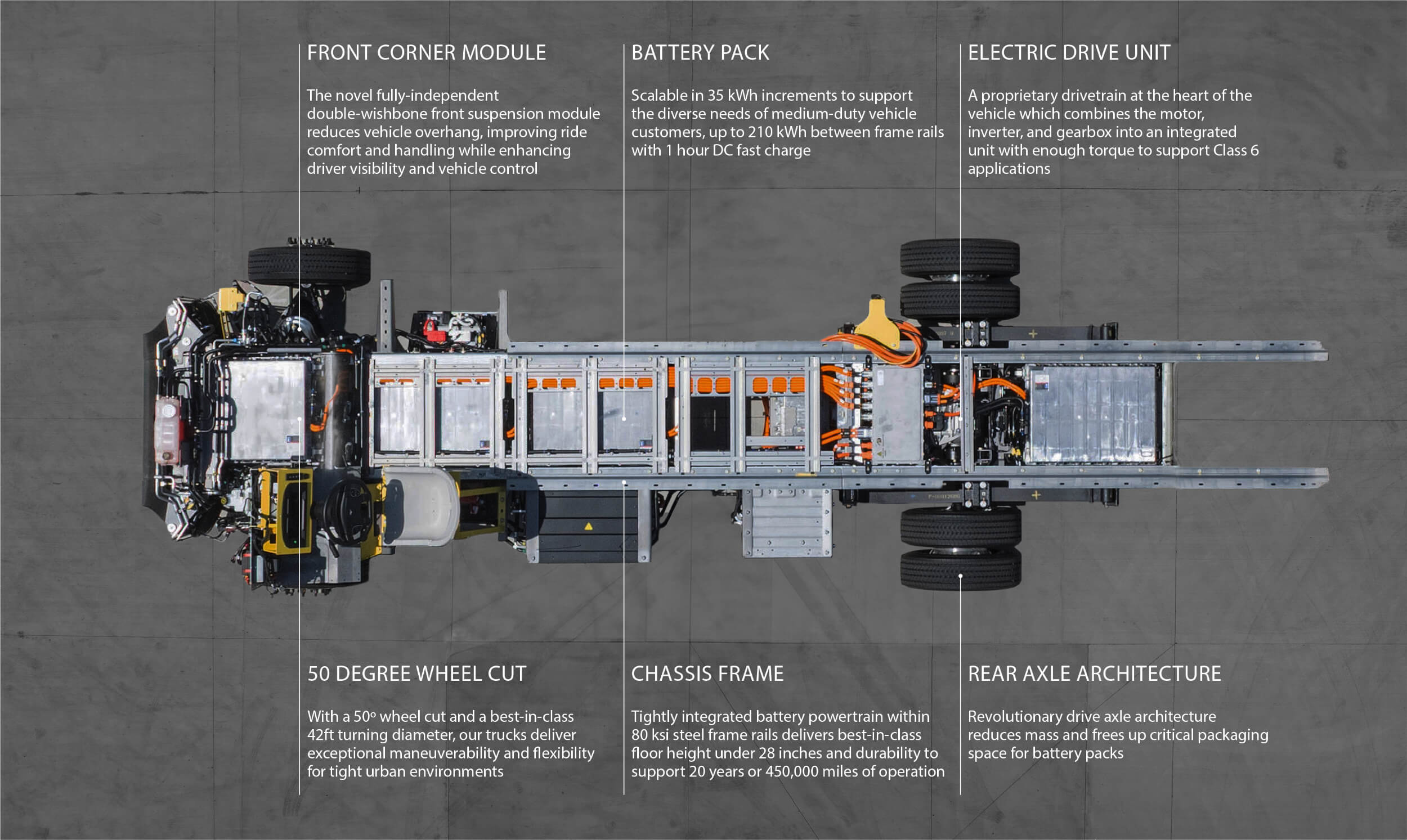

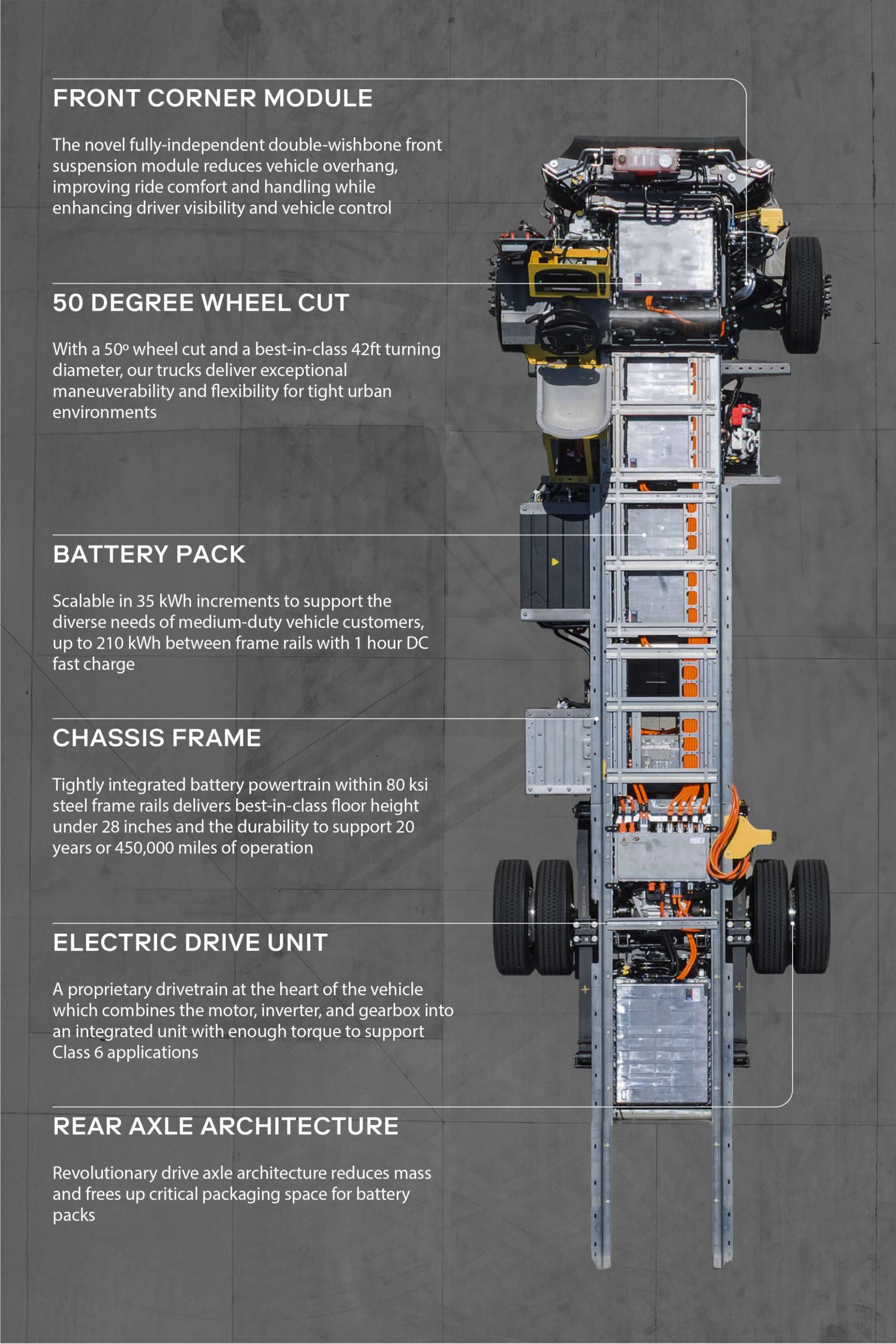

INNOVATIVE CHASSIS ARCHITECTURE

Harbinger’s scalable stripped chassis has been built to support all of the popular medium-duty body types available today, including commercial walk-in vans, recreational vehicles, box trucks, and others. The front overhang is reduced by Harbinger’s innovative independent front suspension, and the tight integration of battery, powertrain, and frame allows a best-in-class floor height.  Steer-by-wire and brake-by-wire systems offer greater flexibility for driver positioning and prepares fleets for future innovations in autonomy and advanced safety.

  • Forged steel independent double-wishbone front suspension
  • Heavy duty steer-by-wire actuator with 50-degree wheel angle
  • Forged rear semi-live axle with full-floating wheel ends
  • Front GAWR options: 6,000/9,000 lbs
  • Rear GAWR options: 12,000/17,500 lbs
  • High strength steel frame with forged motor cross member

SPECIALIZED PERFORMANCE eAXLE

A unique 14-pole permanent magnet motor, power electronics, and gearbox package together with our first-of-its-kind rear axle to create a compact and durable drive unit, bringing improvements in energy efficiency, lower cost, and enhanced vehicle safety.  This approach improves energy efficiency, lowers cost, and brings critical safety improvements by enabling the battery systems to be positioned entirely inside the frame. The drive unit is direct oil cooled and is designed to last 450,000 miles in commercial truck applications.

  • Unique 14-pole motor combined with power electronics and gearbox
  • Power: 350 kW/470hp
  • Output Torque: 18,500 Nm/13,700 ft-lb

SCALABLE BATTERY PACK

Harbinger’s battery system operates at 800 VDC and is liquid cooled and precisely managed for superior performance and durability, lower cost, and enhanced safety.  The battery packs are fully protected by the vehicle frame and scalable in 35 kWh increments to economically support customer needs.  Built with cutting edge casting technology, the battery system is the first of its kind engineered to meet the demanding commercial vehicle lifetime requirements.

  • Usable Energy Capacity: 35 kWh
  • Maximum System Voltage: 800 VDC
  • Liquid Cooled
  • 21700 form factor lithium ion cells
  • Monolithic die-cast aluminum alloy construction
